26mL x 10mW Class 1A Colorbond Gable Shed House Kit



This BlueScope Colorbond Gable Shouse Kit offers Class 1A premium strength and quality. It features a 20m2 alfresco awning, a 25m2 garage with internal access, and horizontal wall cladding for added appeal. This 10mW x 26mL Australian-made kit includes all necessary materials and is designed for easy DIY construction. Components such as Z150 purlins and girts are pre-punched and bolted for convenience. The full range of Colorbond® colours can be used on all external elements of the shed, and these can be customized to your personal preference. Available to Sydney Metro, Hills, and Blue Mountains - the perfect blank canvas to create your dream home.



Delivery available to Sydney Metro, Hills District & Blue Mountains only.

SHED DETAILS

BUILDING CLASS: Gable 1a Enclosed

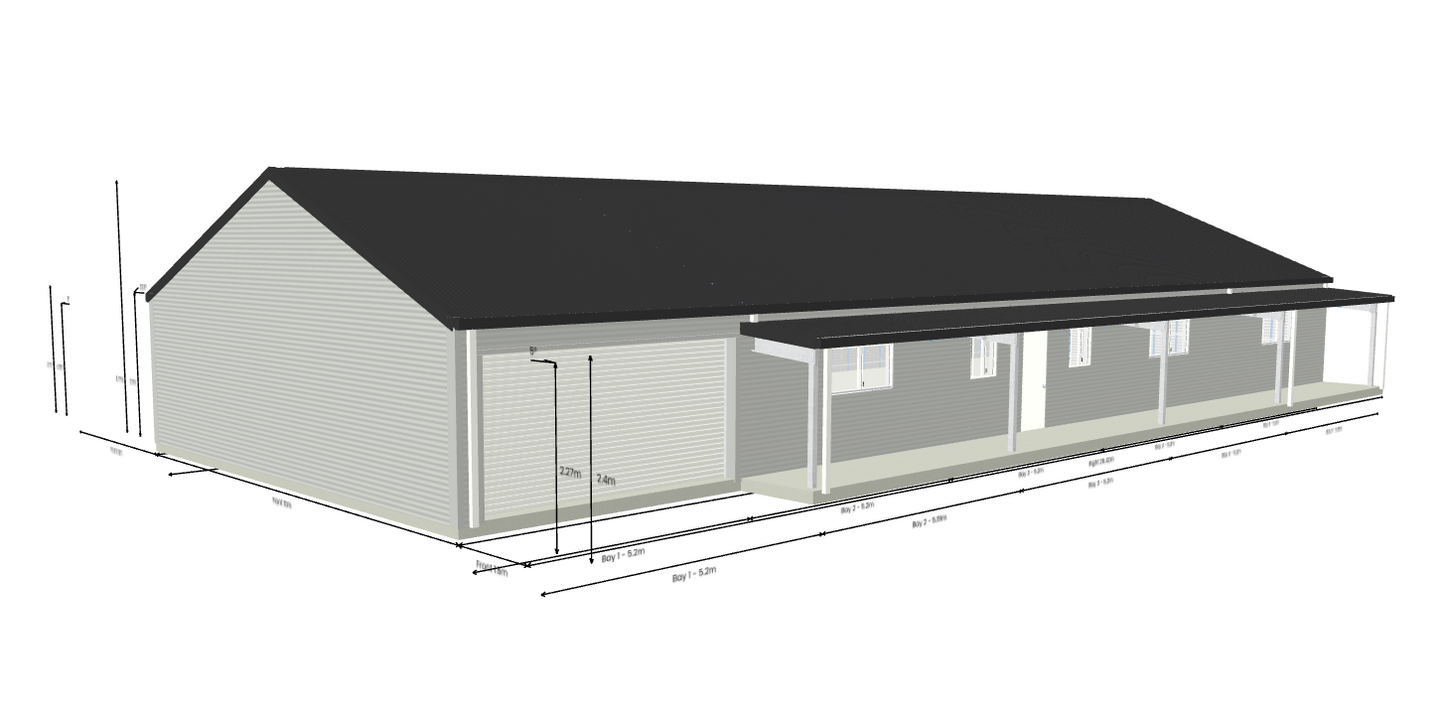

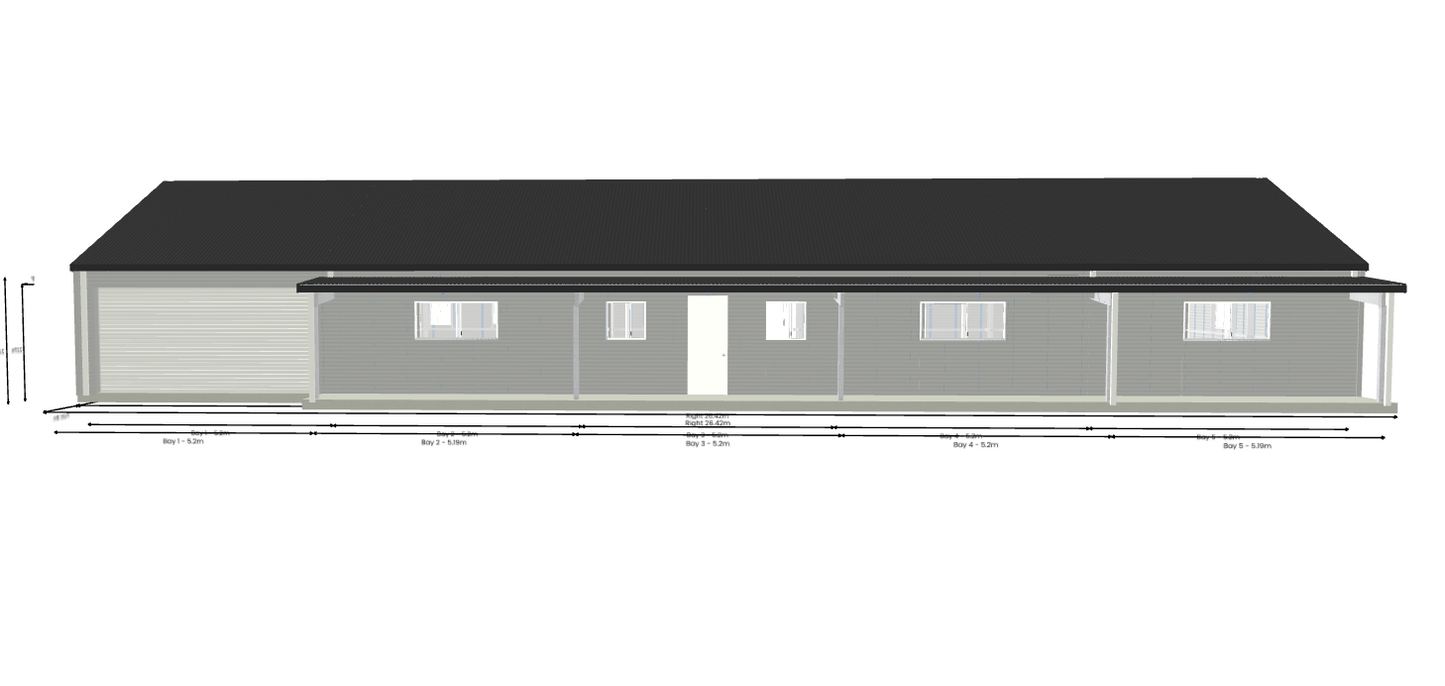

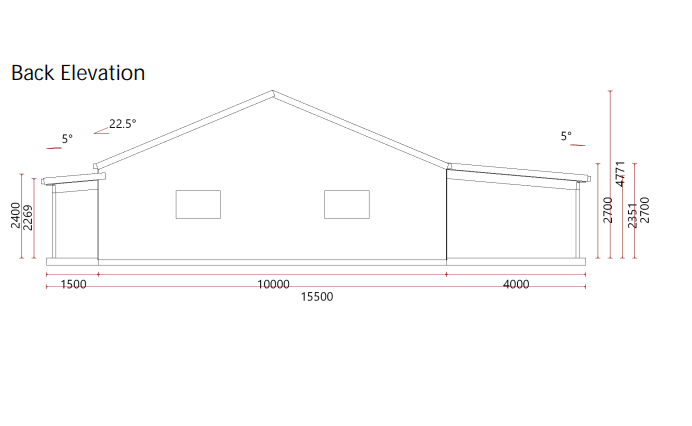

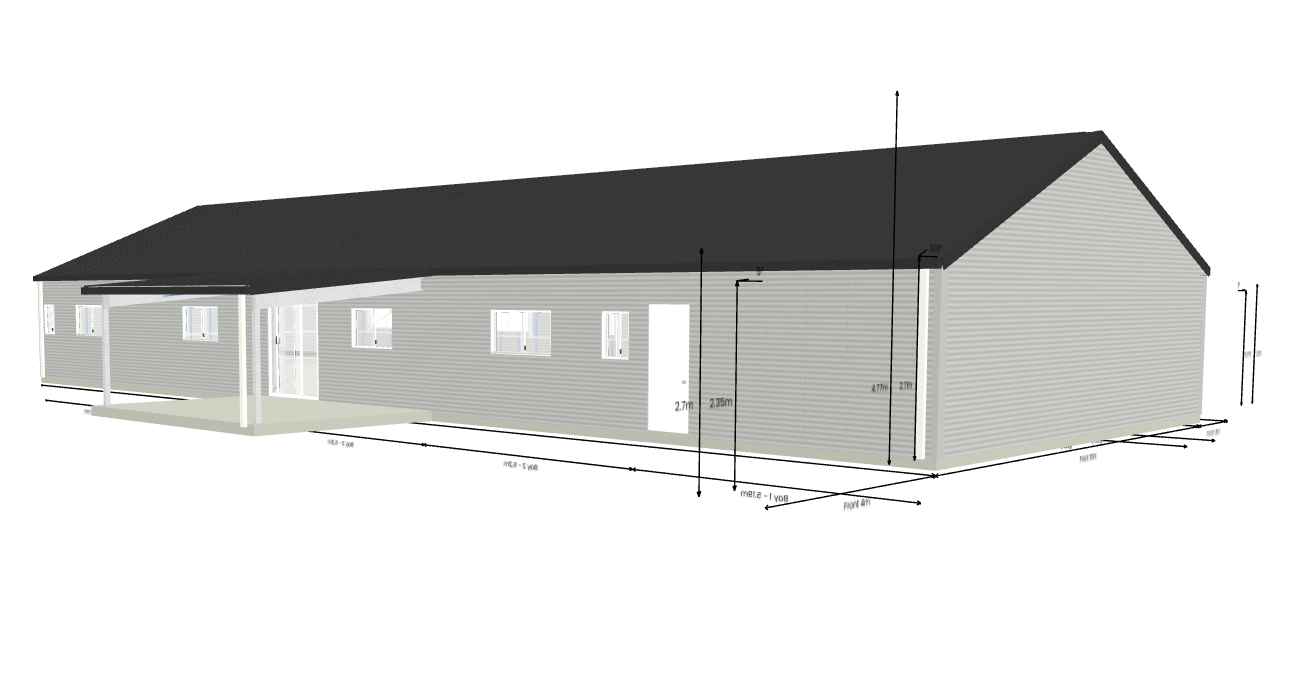

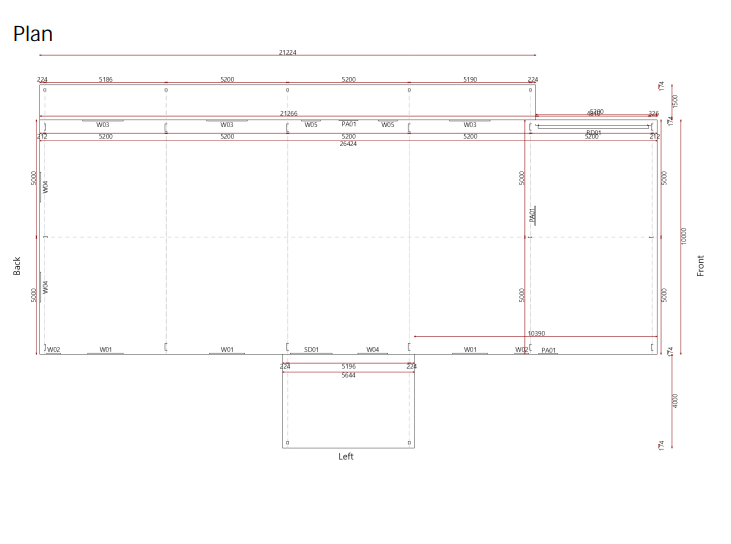

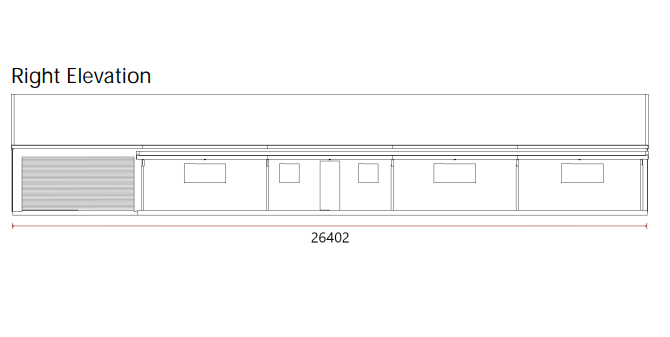

BUILDING SIZE: Gable 10m (w) x 26.4m (l) x 2.7m (h)/Left Awning 4m (w) x 2.35m (h)/Right Awning 1.5m (w) x 2.27m (h)
ROOF PITCH:  Gable 22.5°/Left Awning 5°/Right Awning 5°°
WALL CLADDING: Trimdek or Corrugated Cladding 0.42 BMT Colorbond® - Horizontal
ROOF CLADDING: Trimdek or Corrugated Cladding 0.42 BMT Colorbond®
RIDGE TYPE: 3 Break Ridge Cap Colorbond®
BARGE TYPE: Barge Capping Colorbond®
GUTTER: Quad Gutter 115HF Gutter Colorbond®
DOWNPIPE: 100 x 75 Downpipe 1.8m Colorbond®
SLAB CONNECTION: On Slab
ROLLER DOORS: 1x AA(N2) Roller Door - 2400h x 4760w Colorbond® to fit opening 2200h x4660w
PA DOORS: 3x Larnec PA Door 820 mm wide Colorbond®
WINDOWS: 3x Sliding Window 790h x 1505w 4mm Clr Flt
S1600 U4000 W300pa With
Fibreglass 3x Sliding Window 790h x 1505w 4mm Clr Flt
S1600 U4000 W300pa With Fibreglass Fly Screen/2x Sliding Window 790h x 589w 4mm Clr Flt S1800 U4500 W300pa With Fibreglass Fly Screen/3x Sliding Window 790h x 1731w 4mm Clr FltS1600 U4000 W300pa With Fibreglass Fly Screen/2x Sliding Window 790h x 816w 4mm Clr Flt S1600 U4000 W300pa With Fibreglass Fly Screen.
SLIDING DOORS: 1x Sliding Door 2100h x 1810w 4mm Clr Tghn S0800 U2000 W300pa w/Trim With Fibreglass Fly Screen
VERMIN PROOFING Yes

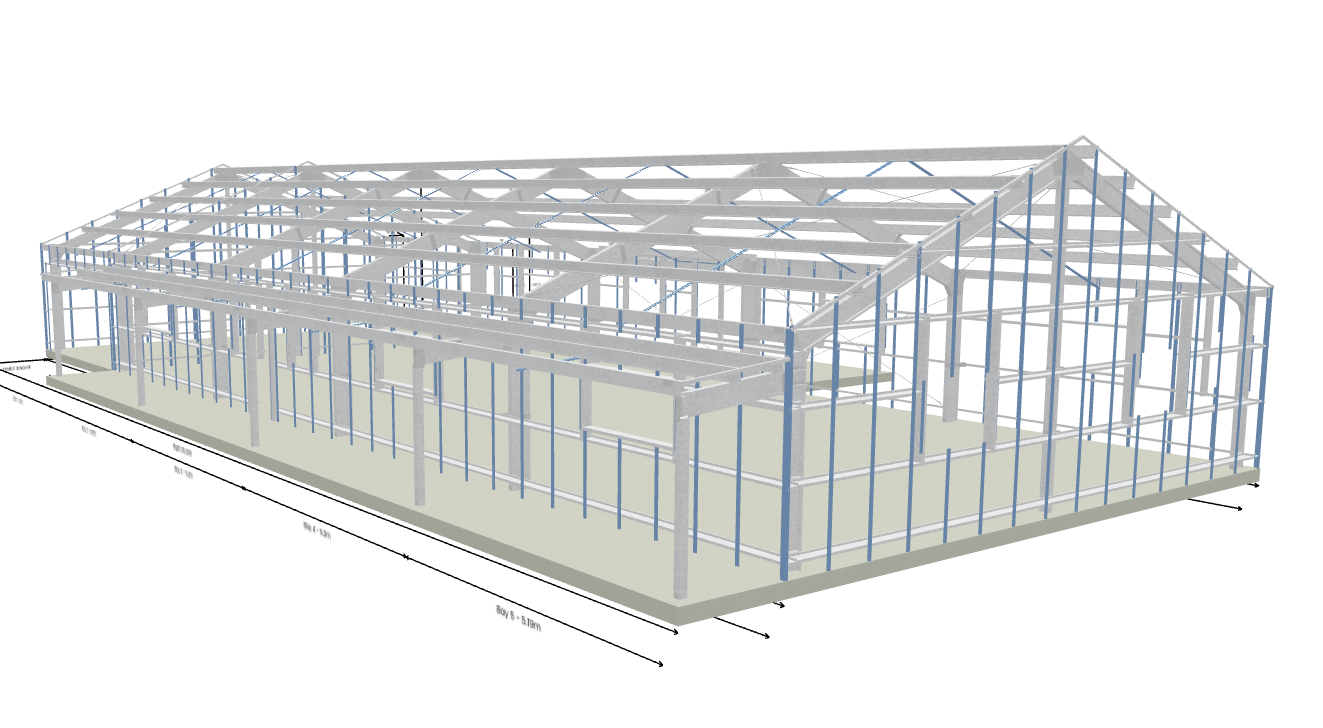

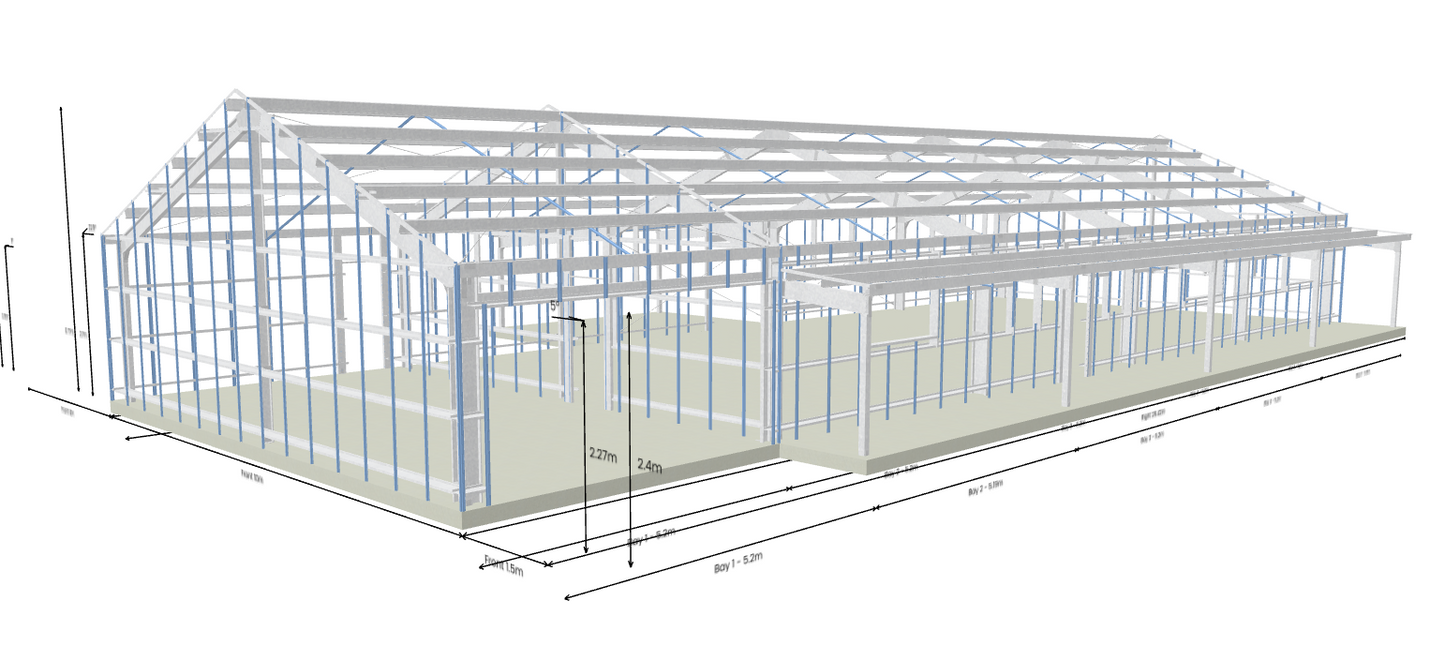

COLUMNS: Frame 1, 2, 6 - C25019 C Section 254 x 76 x 1.9/Frame 3, 4, 5 - C30024 C Section 300 x 96 x 2.4/Left Awning: Frame 3, 4 - SHS100100306 SHS 100 x 100 x 3.0 x 6000/Right Awning: Frame 2, 3, 4, 5, 6 - SHS100100306 SHS 100 x 100 x 3.0 x 6000
RAFTERS: Frame 1, 2, 6 - C25019 C Section 254 x 76 x 1.9
Frame 3, 4, 5 - C30024 C Section 300 x 96 x 2.4/Left Awning: Frame 3, 4 - C25019 C Section 254 x 76 x 1.9/Right Awning: Frame 2, 3, 4, 5, 6 - C25019 C Section 254 x 76 x 1.920015
GIRTS: Z15015 (Bolted)
PURLINS: Z15015 (Bolted)
WEIGHT: 9246kg

PRICING INCLUSIONS

• All kit materials including fasteners
• GST
• Installation Guide
• Engineering
• Bill of Materials
• Construction Plans
• Engineering Detail
• Engineering Certificate
• Invoice supplied upon purchase

SPECIFIC EXCLUSIONS

• Drawings, other than detailed above.
• Items or products other than listed above.
• Site visits or design consultations.

• Consent authority including any building, council, development or construction certificate application(s).
• Construction of the kit and any foundations (supplied in a kit form only).
• Insurance of the steel building once delivered to site or collected from the depot.
