12mW x 6mL Colorbond American Barn Shed Kit

This Australian made BlueScope 12mW x 6mL Colorbond Barn Shed Kit is guaranteed to provide you with premium quality, strength, and reliability. Available to Sydney Metro, Hills & Blue Mountains only, it includes all materials needed to assemble the Shed so you can rest assured that you're getting everything you need in one convenient package. It's also engineered for maximum safety and includes plans for easy DIY construction. This is a premium design shed using Z150 purlins & girts (not tophats) which are punched & bolted for ease of construction.

Full range of Colorbond® colours available to all external elements of the shed. Colours can be customized to your own requirements & will be confirmed upon purchase.

Delivery available to Sydney Metro, Hills District & Blue Mountains only.

SHED DETAILS

BUILDING CLASS: Garage Gable 10a Enclosed
BUILDING SIZE: Garage Gable 5m (w) x 6m (l) x 3.5m (h)/Left Awning 3.5m (w) x 2.69m (h)/Right Awning 3.5m (w) x 2.69m (h)
ROOF PITCH: Garage Gable 15°/Left Awning 5°/Right Awning 5°
WALL CLADDING: Trimdek or Corrugated Cladding 0.42 BMT Colorbond® - Vertical
ROOF CLADDING: Trimdek or Corrugated Cladding 0.42 BMT Colorbond®
RIDGE TYPE: 3 Break Ridge Cap Colorbond®
BARGE TYPE: Barge Capping Colorbond®
GUTTER: Quad Gutter 115HF Gutter Colorbond®
DOWNPIPE: 100 x 75 Downpipe 1.8m Colorbond®
SLAB CONNECTION: On Slab
ROLLER DOORS: 1x A(N2) Steel-line Roller Door - 3000h x 3430w
Colorbond to fit opening 3000hx3350w/2x A(N2) Steel-line Roller Door - 2100h x 2850w
Colorbond to fit opening 2100hx2700w
PA DOORS: 1x Larnec PA Door 820 mm wide Colorbond®
VERMIN PROOFING Yes

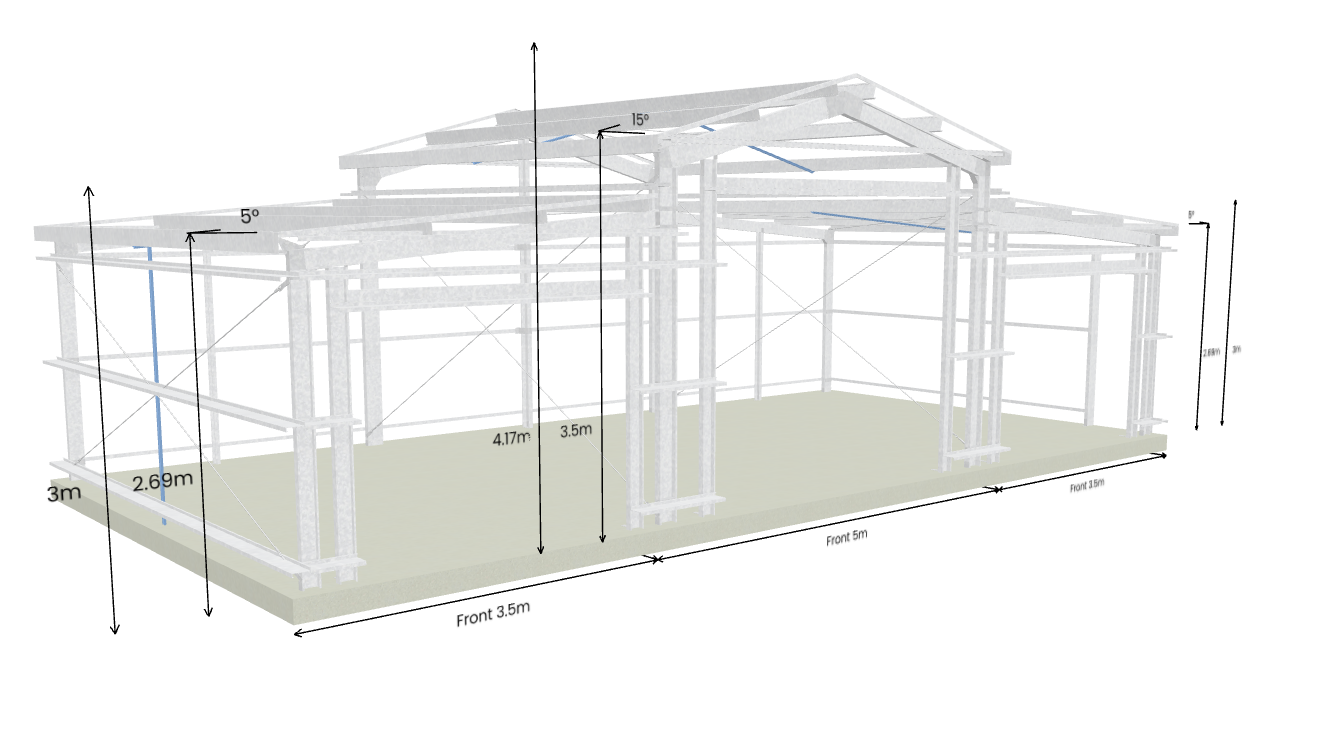

COLUMNS: Garage Gable Frame 1, 2 - C20015 C Section 203 x 76 x 1.5 Left Awning Frame 1, 2 - C15015 C Section 152 x 64 x 1.5 Right Awning Frame 1, 2 - C15015 C Section 152 x 64 x 1.5
RAFTERS: Garage Gable Frame 1, 2 - C20015 C Section 203 x 76 x 1.5 Left Awning Frame 1, 2 - C15015 C Section 152 x 64 x 1.5 Right Awning Frame 1, 2 - C15015 C Section 152 x 64 x 1.5
GIRTS: Z15015 Z Section 152 x 64 x 1.5 (Bolted)
PURLINS: Z15015 Z Section 152 x 64 x 1.5 (Bolted)
WEIGHT: 3301kg

PRICING INCLUSIONS

• All kit materials including fasteners
• GST
• Installation Guide
• Engineering
• Bill of Materials
• Construction Plans
• Engineering Detail
• Engineering Certificate
• Invoice supplied upon purchase

SPECIFIC EXCLUSIONS

• Drawings, other than detailed above.
• Items or products other than listed above.
• Site visits or design consultations.

• Consent authority including any building, council, development or construction certificate application(s).
• Construction of the kit and any foundations (supplied in a kit form only).
• Insurance of the steel building once delivered to site or collected from the depot.
